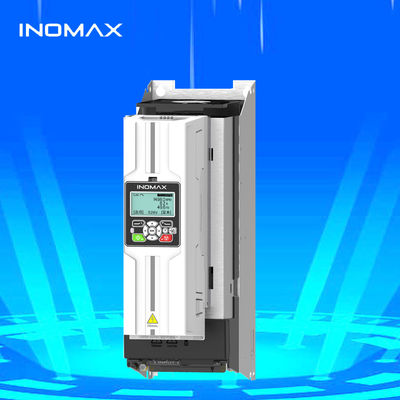

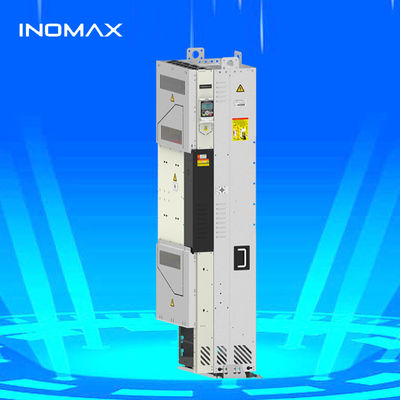

IP54 IP55 IP65 Variable Frequency Drive for Low Voltage Synchronous Motor with 220V and 380V Input

Brand Name:	Inomax
Model Number:	ACS880-B23-05A6-3B
MOQ:	1
가격:	$500

Detail Information

제품 설명

Detail Information

원래 장소:

중국

인증:

제어 모드:

슬립 보상 제어, V/F 제어, 센서리스 벡터 제어, 직접 토크 제어, PID 제어, 벡터 제어

공칭 전압:

220 V, 380V, 690, 1140

파워 단계:

평가 된 전력:

1.5KW-5000KW

치수:

167.5*185.8*80mm

전력 범위:

0.75kW-5000kW

전원 공급 장치:

220V, 230V, 240V, 380V, 400V, 440V, 480V, 500V, 520V, 600V, 660V, 690V

프로토콜 유형:

Modbus, Canopen, Profibus, Profinet, Ethercat, Ethernet

토크 응답:

5ms 미만

토크 반복성:

속도 정확도:

0.5% 미만

속도 해상도:

0.01Hz

출력 주파수:

0 ~ 1000Hz

입력 thdi:

<5%

하모닉스:

3% 미만

강조하다:

IP54 IP55 IP65 Variable Frequency Drive

220V Variable Frequency Drive

380V Variable Frequency Drive

제품 설명

IP54 IP55 IP65 Variable Frequency Drive for Low Voltage Synchronous Motor

ACS 880 High Performance DTC Drive

Model reference	ACS880 abb analog
Product or component type	High performance DTC drive
Product specific application	Complex, Heavy duty, Speed control, Tension control, Position control, Lifting control, DTC, STO, direction torque control, Safe Torque Off
Power range	0.75KW-5000KW
Power supply voltage	220v, 230v, 240v, 380v, 400v, 440v, 480v, 500v, 520v, 600v, 660v, 690v
Control mode	DTC control, Vector control
Protocol type	Modbus, CanOpen, Profibus, Profinet, Ethercat, Ethernet
Warranty	24 months

ACS880 Advantages

Direct torque control technology, same as ABB
Compatible with any sine wave AC motor including IM/PM/SynRM/Servo motor
Four-quadrant inverter with energy feedback, saving energy and reducing harmonics

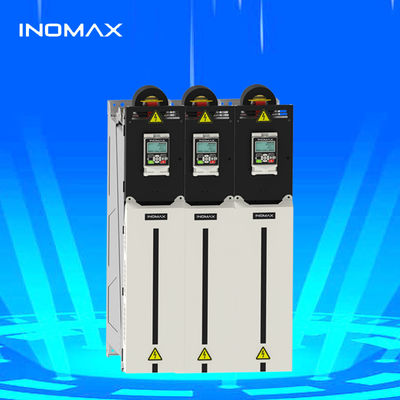

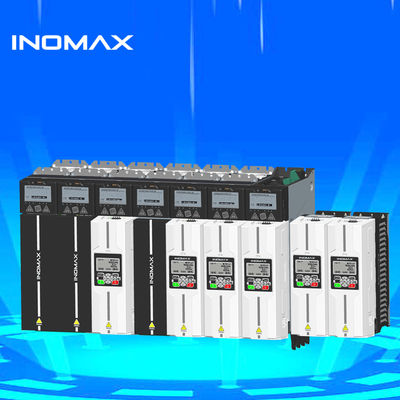

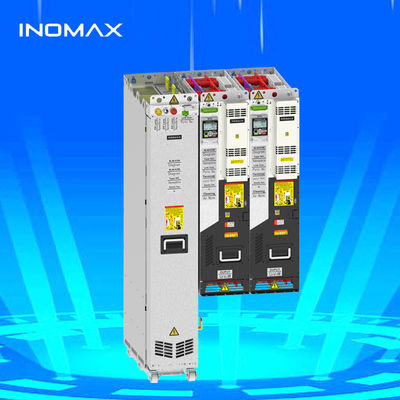

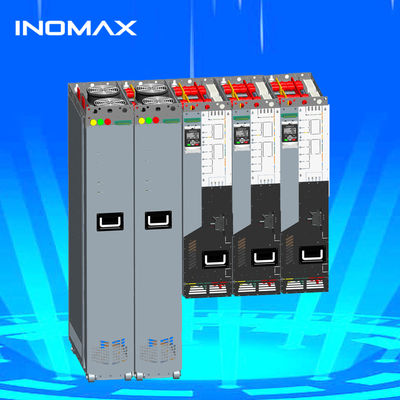

Support Stack Type inverter or Multi-drive modules type inverter
Support 380V-690V from 0.75KW-5000KW
Built-in standard EMC filters, DC reactor and braking units
Support Budbus, Profibus, ProfiNET, EtherCAT, Ethernet communication
2 times torque in zero speed without sensor control
Torque response time lower than 5 ms for sensorless applications
Speed loop's dynamic response accuracy is 0.7%
Speed accuracy of sensorless application is less than 0.5%
Leading weak magnetic control technology minimizes motor losses
Intelligent temperature controllable fan increases drive lifespan
Built-in multiple application parameter macros for easy setup

Industrial Applications

ACS 880 with direct torque control and energy saving functions is ideal for industries including:

Steel production
Cement manufacturing
Chemical processing
Oil & Gas
Power generation
Polymer & Rubber
Pulp & Paper
Sugar processing
Minerals & Mining

Metallurgy Project Experience

The converter steelmaking process at Henan Yaxin Iron and Steel Plant requires precise control systems for quality molten steel production. Our solution used master/slave control with four 90KW motors for absolute synchronization, eliminating "nodding" and "shaking" issues.

Frequently Asked Questions

What is direct torque control?

Direct Torque Control (DTC) is a method of controlling AC motors that provides precise torque control without needing a feedback sensor. It offers fast response times and high efficiency.

What is the benefit of direct torque control?

Fast torque and flux changes
High efficiency with minimized switching losses
No overshoot in step response
No dynamic coordinate transforms needed
No separate modulator required
No PI current controllers or tuning needed
Automatic handling of DC voltage variations
Low audible noise

What Type Of Motor Is Compatible With Inverters?

The motor must be a three phase AC induction motor. For best results, use an inverter-grade motor with proper insulation (800V for 200V class inverters or 1600V for 400V class inverters).

How do you select a VFD?

Consider the motor size and application requirements first, then match the VFD specifications accordingly. Key factors include power rating, voltage class, control features, and communication protocols needed for your application.
